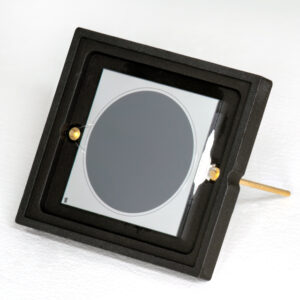

AXUV(High Energy Photon, Electron, and X-Ray Detection)
The AXUV family of detectors features high performance measurement of photons, electrons, or X-rays from 0.0124nm to 190nm and detects energy from 100eV to 50keV with a remarkable 100% internal quantum efficiency.
Download Certificates:
ROHS Certification AXUV detectors ensure precise electron, X-ray, and extreme UV detection with High Stability
Features
- Large Detection Area
- 100% Quantum Efficiency from UV to Visible Spectrum
- Windowless for enhanced response below 200 nm
Applications
- Electron Detection
- Synchrotron Radiation Monitoring
- Electron Reticle Inspection
What fits your specification?
Find the perfect product in just a few clicks by selecting your required criteria, and instantly view all options that
meet your needs. If multiple results appear or none quite fit, simply reach out to your contact person—we’ll help
with the selection or collaborate on developing a custom solution for your application.
Model Name/Number |
Part Number |
Description |
Active Area (mm2) |
Certification and Compliance |
Product Resources |
|---|---|---|---|---|---|
AXUV20ACS |
507-060 |
Ceramic Socket for Devices to Eliminate Soldering to Leads |
7.4 |
||
AXUV20ELG |
ODD-AXU-033 |
22 Pin Dual-In-Line Package |
3 |
||
AXUV16ELCS |
507-102 |
Ceramic Socket for Devices to Eliminate Soldering to Leads |
2.54 |
||
AXUV20A |
ODD-AXU-026 |
Circular Active Area |
23 |
||
|
AXUV20ELCS |
507-071 |
Ceramic Socket for Devices to Eliminate Soldering to Leads |
2.54 |
||
AXUV16ELG |
ODD-AXU-023 |
40 Pin Dual-In-Line Package |
10 |
||
AXUV100CS |
507-065 |
Ceramic Socket for Devices to Eliminate Soldering to Leads |
12.5 |
||
AXUV300C |
ODD-AXU-082 |
Large Rectangular Detection Area |
331 |
||
AXUV576C |
ODD-AXU-048 |
Square Active Area |
576.5 |
||
AXUVHS5 |
ODD-AXU-058 |
Ideal for Electron Detection |
1 |
||
AXUV100TF400 |
ODD-AXU-002 |
100 mm2 Square Active Area |
100 |
||
AXUVHS6 |
AXUVHS6DS |
Ideal for Electron Detection |
0.0008 |
